The Bargain of a Lifetime!

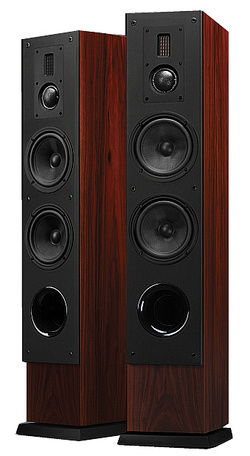

The SWANS RM600 is the genuine High End loudspeaker for the masses

Practically all of the technical highlights of the 'big' M-Series models are incorporated within the SWANS RM600. It is a real high-flier with a truly remarkable cost versus performance relationship. Without a doubt it is the benchmark for others in its price class. Very strict cost controls and exceptionally high production runs have made the 'impossible', possible.

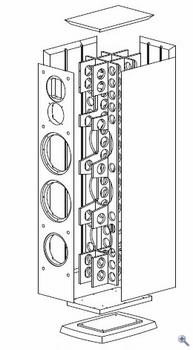

The exterior's conservative lines should not confuse about the inherent values. There is double baffle construction, massive MDF cabinet with genuine wood veneer and ample inner bracing designed to reduce standing waves and cabinet resonance.

Upon listening you will agree that our design goals were met. The sound is quite transparent and detailed. Timing is close to perfect and once again we've tuned this speaker to the overall Swans sound we have become famous for.

The close relationship to our top-of-the line products does not go unnoticed.

Know How:

SWANS ribbon tweeter units are precision instruments!

Those familiar with our speakers might well ask what needed improvement to our previous tweeter, the RT1?

Our new RT1.3W has significantly more foil area, a much more powerful magnet and improved magnet flux geometry, plus an even more valuable foil membrane. The result is an even higher output and improved dynamic response with lowered distortion factor. Even the dispersion characteristics got wider. To put things in perspective, the RT1.3W compared to typical tweeters has 1/50 of the moving mass and so reaches well up into the ultra-high frequencies, reproducing transients in a genuine life-like manner.

As you can well imagine, the midrange driver is no less spectacular:

Also undergoing a re-engineering was the magnet flux geometry, the flat-wire wound speaker coil and the feather light dome with its inherently high damping factor. This led to lowered midrange driver harmonic distortion while keeping linearity almost flat in the critical 800 to 8,000 Hz frequency range.

Obviously SWANS research and development team needed to match the bass reproduction with complimentary chassis. What evolved was the L6 driver. It is a long-throw design which operates under short-throw constrictions to roll-off with practically no notch to the midrange response. It incorporates a very light but extremely stiff and highly neutral internal resonance membrane cone consisting in part of black Kevlar. The driver has a thoroughly vented voice coil and an air turbulence optimized cast aluminum frame. The result is a forceful bass with real gut power yet impressive short response time specification. That the crossover offers connections for bi-wiring and that its printed circuit board is of fiberglass and the components thereon are mainly highest quality foil capacitors and wound chokes is astonishing in this market segment.

The RM600 plays in the same league as the SWANS top models!

Easy-going, honest and consistent ...


SWANS RM600 technology, specifications and cabinet


• 3.5-Way/4th order bass reflex system
• Frequency response: 36Hz-22kHz +/-3dB
• Efficiency ( 2.83V/m ): 89dB
• Nominal Impedance: 4 Ohm
• Crossover frequencies: 750/1000/6000 Hz
• Tweeter: Swans RT1.3 isodynamic ribbon

• Midrange: Swans DMO doped 50mm soft dome
• Bass/Mid-bass: 2x Swans L6  6.5" black Kevlar sandwich HQ-woofer
• Suggsted amplifier power: 20-200W
• Dimensions: 1080x224x327mm (HxWxD)
• Weight: 27.1 Kg/pc.
• Cabinet: dark walnut real wood veneer with satin sealer, pianolacquer black or white (front baffle structured flat black)
